APPLICATION :
Recommended for suspension of cold pipe lines or hot lines where no insulation is required. It can also be used for supporting pipes along roof.
CONSTRUCTION :

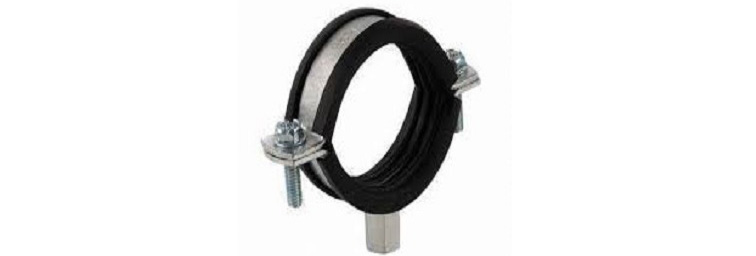

Riser Pipe Clamps consists of two carbon steel flat bars bent to shape and held together by two bolts. Reduces noise upto 18 dB. It also consists of piece carbon steel shaped to wrap around the pipe, made form shaped carbon steel plate.
MATERIAL :
Carbon Steel also other materials can also be provided on request.
APPROVALS :
Manucaturers standarization Society ANSI/MSS SP-69 & SP-58(Type 12)
TEMPERATURE RANGE:
-20°C to 110°C
FINISH AVAILABLE :
Plain, Hot Dip Galvanized, Electro-Galvanized.

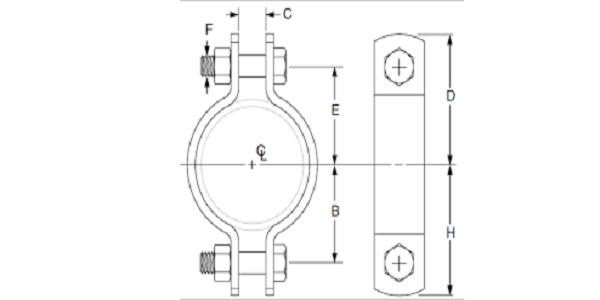

| Product Code | Nominal Pipe Size | Pipe OD (mm) | Dimension | Max Load (KG) |
|||
|---|---|---|---|---|---|---|---|
| Inch | MM | Lenght | Bolt Size | Gap G | |||
| SMI-TBPCL-0.5 | 1⁄2’’ | DN15 | 21.3 | 200 | M10 | 12 | 150 |
| SMI-TBPCL-0.75 | 3⁄4’’ | DN20 | 26.7 | 210 | M10 | 12 | 150 |
| SMI-TBPCL-1 | 1’’ | DN25 | 33.4 | 230 | M10 | 12 | 150 |
| SMI-TBPCL-1.25 | 1 1⁄4’’ | DN32 | 42.1 | 260 | M10 | 12 | 150 |
| SMI-TBPCL-1.5 | 1 1⁄2’’ | DN40 | 48.2 | 260 | M10 | 12 | 150 |
| SMI-TBPCL-2 | 2’’ | DN50 | 60.3 | 260 | M10 | 16 | 150 |
| SMI-TBPCL-2.5 | 2 1⁄2’’ | DN65 | 73.0 | 290 | M12 | 16 | 350 |
| SMI-TBPCL-3 | 3’’ | DN80 | 88.9 | 290 | M12 | 16 | 350 |
| SMI-TBPCL-3.5 | 3 1⁄2’’ | DN90 | 101.6 | 330 | M12 | 16 | 350 |
| SMI-TBPCL-4 | 4’’ | DN100 | 114.3 | 330 | M12 | 19 | 350 |
| SMI-TBPCL-5 | 5’’ | DN125 | 141.3 | 350 | M16 | 19 | 500 |
| SMI-TBPCL-6 | 6’’ | DN150 | 168.3 | 380 | M16 | 22 | 500 |
| SMI-TBPCL-8 | 8’’ | DN200 | 219.1 | 470 | M16 | 25 | 1000 |
| SMI-TBPCL-10 | 10’’ | DN250 | 273.0 | 520 | M16 | 25 | 1000 |
| SMI-TBPCL-12 | 12’’ | DN300 | 323.8 | 580 | M20 | 25 | 1200 |
| SMI-TBPCL-14 | 14’’ | DN350 | 355.6 | 610 | M20 | 28 | 1200 |
| SMI-TBPCL-16 | 16’’ | DN400 | 406.4 | 660 | M20 | 28 | 1800 |
| SMI-TBPCL-18 | 18’’ | DN450 | 457.2 | 710 | M20 | 32 | 1800 |
| SMI-TBPCL-20 | 20’’ | DN500 | 508.0 | 760 | M20 | 35 | 1800 |
| SMI-TBPCL-24 | 24’’ | DN600 | 609.6 | 880 | M20 | 42 | 1800 |
