Spiral Wound Gaskets :

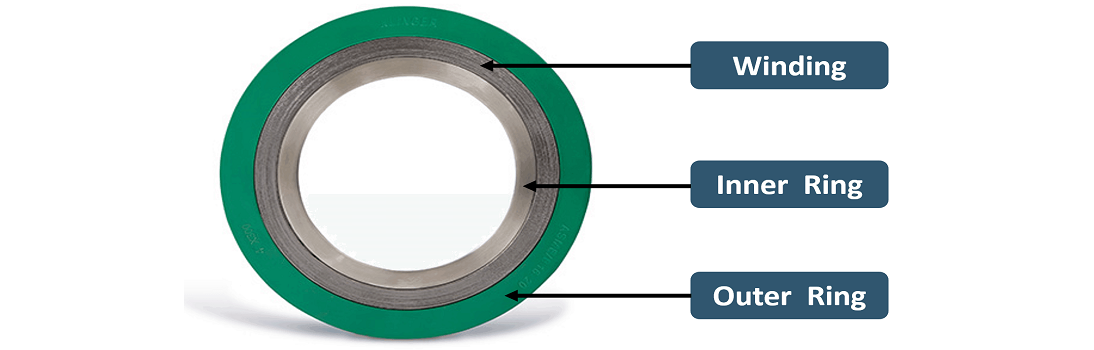

The Spiral Wound Gaskets are made out of a metallic persistent stripe with an extraordinary molded profile, combined with a ceaseless filling stripe (Asbestos, PTFE, Grafoil, Ceramic and so forth) uniformly twisted in concentric winding under steady pressure. The Spiral Wound Gaskets are strengthened on the inward and external diametre by twisting of a few electrically welded winding metal as it were.
MATERIALS :
Standard materials are type 304 Stainless steel with composite Asbestos Filler. Materials available are
| METALS | FILLERS |
|---|---|
| Type 304 Stainless | Compressed Asbestos Jointing Strips |
| Type 316 Stainless | P. T. F. E. Sintered Strip |
| Aluminium | Asbestos paper |
| Copper | White Chrysotile Asbestos |
| Monel | Blue African Crocidolite |
| Steel, Plain | GRAFSEAL |
| Steel, Zinc Coated |
GASKET THICKNESS AVAILABLE :
| NOMINAL | ACTUAL |
|---|---|
| 1/8" (3.2 mm) | .125" ± .005" (3.2 mm) |
| 3/16" (4.8 mm) | .175" ± .005" (4.5 mm) |
